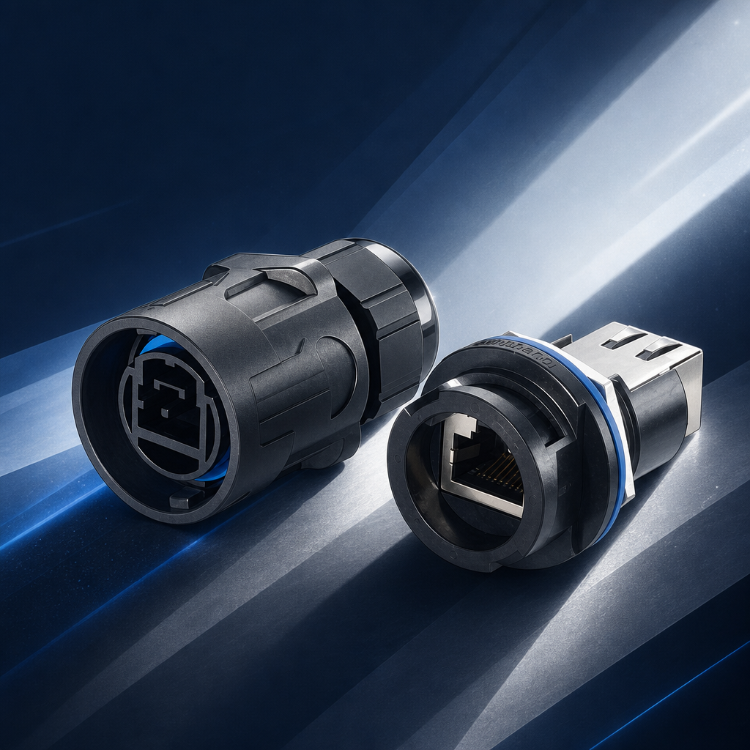

Rugged RJF Connectors

The Rugged RJF Connector series from Amphenol PCD provides sealed Ethernet connectivity that withstands exposure to dust, fluids, and mechanical shock. Using the patented RJStop® system, these connectors let engineers deploy standard RJ45 cordsets inside a protective composite housing without field crimping or special tools.

Key Features

• IP68 sealing ensures complete protection against water and particulate ingress for outdoor and industrial installations.
• Reverse‑bayonet coupling offers a rapid and secure quarter‑turn lock suitable for high‑vibration environments.
• No on‑site cabling—use pre‑tested Ethernet patch cords for quick replacement and consistent network performance.
• Mechanical endurance rated for at least 500 mating cycles and 70 N axial retention per RJ45 cordset.
• Accepts cable diameters from 5.5 mm (0.216 in) to 7 mm (0.275 in).
• Supports Ethernet Class D / Cat 5e and Class E / Cat 6 operation for 10 Base‑T, 100 Base‑TX, and 1000 Base‑T networks.

Applications

• Military and industrial data networks requiring sealed RJ45 interfaces
• Vehicle and shipboard communication systems
• Outdoor surveillance, sensor, and control infrastructure
• Rugged computers and field‑deployable network devices

Engineering Considerations

By eliminating field terminations, the RJStop design minimizes installation errors and reduces maintenance time. The composite shell offers reduced weight with corrosion resistance, while the internal strain‑relief structure protects cables from traction and vibration. These connectors integrate easily into panels or enclosures where reliable high‑speed data transmission and environmental sealing are required.

Integration Options

Available in plug and receptacle styles compatible with standard RJ45 cordsets, Rugged RJF Connectors interface with companion backshells and protective caps for complete system sealing. When used with other Amphenol Military & Aerospace harsh‑environment interfaces, they provide a unified network solution linking rugged computing nodes, sensors, and communication subsystems.
