RF Couplers

Previous productRF Power Dividers & Combine...

Next productRF Switches

Amphenol Military & Aerospace RF Couplers form a unified portfolio of passive microwave devices that control signal coupling, power monitoring, and phase‑balanced distribution within broadband 50 Ω systems. Designed for use in radar, electronic warfare, satellite communications, and quantum research applications, these couplers maintain stable performance under demanding environmental and mission conditions.

Coupler Variants

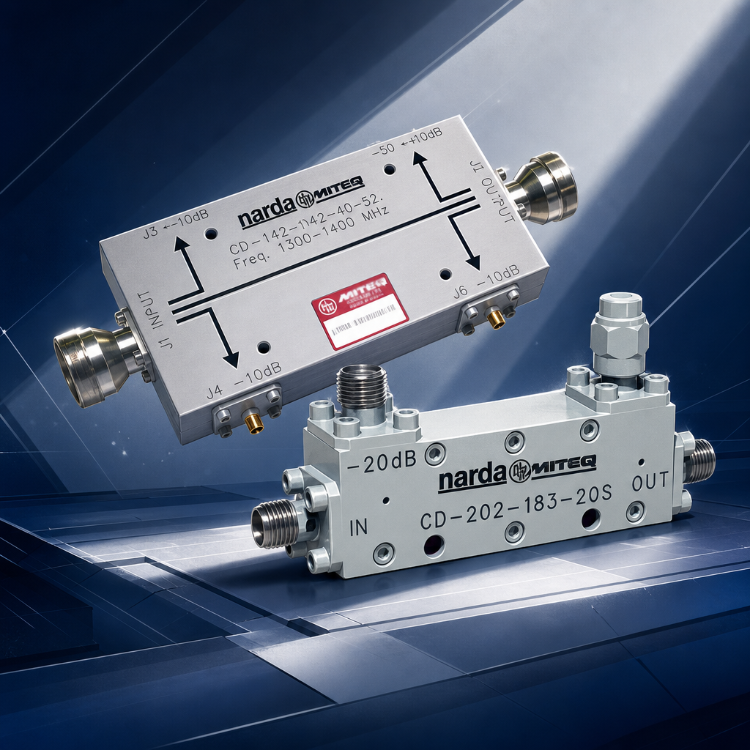

• Directional and Dual‑Directional Couplers – Provide forward or bidirectional power monitoring with low insertion loss, high directivity, and predictable coupling factor values suitable for measurement, calibration, and feedback loops.

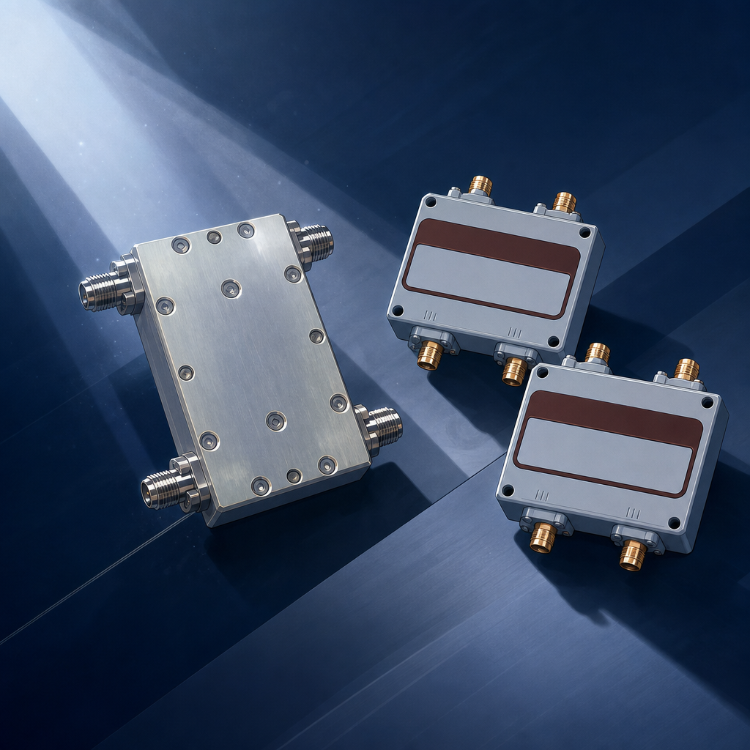

• Hybrid Couplers – Deliver equal‑amplitude outputs with fixed phase relationships, supporting balanced amplifier networks, antenna combiners, and beam‑forming arrays where amplitude and phase balance are critical.
• Quantum and Cryogenic Couplers – Non‑magnetic designs verified for cryogenic operation near 4 K. Maintain low loss and constant impedance for quantum measurement chains and superconducting experimental platforms.
• Space‑Qualified Couplers – Lightweight coaxial and stripline units qualified through thermal‑vacuum and radiation testing for spaceflight and high‑reliability airborne missions.

Technical Overview

• Broadband coaxial or stripline construction ensuring low‑VSWR and accurate 50 Ω impedance match through multi‑GHz ranges.
• Mechanical housings machined from aluminum or stainless steel with corrosion‑resistant plating and optional environmental sealing.
• Available two‑, three‑, and four‑port configurations for sample, through, and isolation paths with repeatable directivity and insertion‑loss performance.
• Compatible with standard Amphenol coaxial interfaces such as SMA, SMP, SMPM, and N‑Type connectors for system integration with matched cable assemblies and terminations.

Integration Guidance

Engineers select AMAO RF Couplers to achieve controlled power sampling and signal distribution within defense and aerospace architectures requiring verified broadband 50 Ω impedance continuity. Hybrid and directional models share footprint compatibility across standard mounting formats to simplify system replacement and design standardization. Environmental variants are tested through thermal‑vacuum qualification and specialty‑environment audits to ensure long‑term stability under temperature, pressure, and radiation extremes.

Applications

• Radar signal chains and power monitoring sections requiring precise coupling and low reflection.
• SATCOM uplink and downlink networks needing phase‑coherent signal distribution.
• Electronic warfare modules and RF test benches requiring stable broadband isolation and directivity.
• Space and cryogenic measurement systems demanding verified impedance performance under extreme conditions.

By combining broadband low‑VSWR design with mission‑qualified construction, Amphenol Military & Aerospace RF Couplers provide high confidence in signal fidelity for defense, aerospace, and emerging quantum applications.
